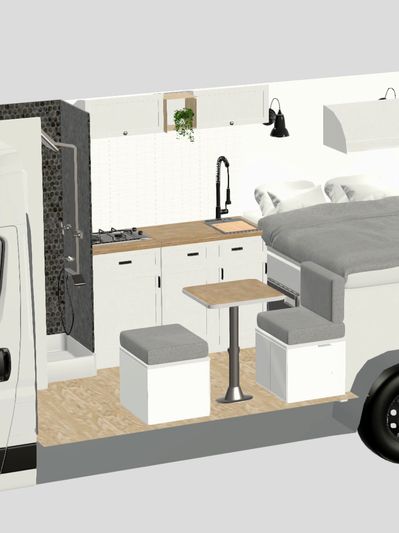

If you love a separation between the cab and the living space this layout is similar to our Himalayas layout, adapted to the Peugeot Boxer/Fiat Ducato/Citroen Relay. A platform bed and a lot of storage for great adventures. Still a large kitchen and shower room.
The extra bed make it perfect for a family of 3.
Based on L3H2 Peugeot Boxer/Fiat Ducato/Citroen Relay
(vehicle not included)
-4 Seasons insulation with PIR board 50mm, closed cell foam, 100mm Plastic recycled insulation fleece for cavities and expanding foam. Bubble foil as vapour barrier.
-Metal part of the van that remain visible are covered with lining carpet when paneling is not possible.
-Lightweight Garnica Efficiency poplar Plywood on wall and ceiling. Low VOC white paint.
-LVT floor in living space (choice of colour from our selection)
-Aluminium trim around floor seams.
-12v fridge/freezer Webasto CR65.
-Thetford Topline 922, double gas hob with 12v ignition.
-4x kitchen units (Lightweight Garnica efficiency plywood) with white shaker doors, 2 drawers with appropriate latches. (different kitchen doors/front drawers available).
-2 overhead cabinet.
-Cutlery divider tray.
-Bamboo kitchen worktop.(Other options available)
-Wall paper special splashback by Behangfabriek or Reco surface 3D tiles effect.
-Choice of black or stainless steel sink with flushed chopping board.
-Choice of black, gold or chrome kitchen tap with hot water.
-Extinguisher and fire blanket.
-Shower room with removable cassette toilet Thetford 565e and fixing plate.
-Air vent from the heater for comfort during the shower and to dry your cloths easily.
-Wall and ceiling with plain acrylic (large choice of colours).Reco surface 3D tiles effect as an option.
-Shower set black, chrome or brushed gold.
-Shelf niche for toiletry.
-ROLdoûr retractable roller doors with arched opening.
-Roof 12v Light/extractor SwiftAir or equivalent.
-Hooks for cloths and towels.
-Dinette area with 2 seats with ottoman storage. Modulable as a sofa or small bed 50x150cm
-Bespoke upholstery cushion-matt x3 with (large choice of colour). Zip on every part for easy wash.
-Driver on a swivel seat
-Bamboo table with removable table leg.
-Thermal curtain separation cabin to living area.
-Platform bed 135x188cm, with mattress Premium Reflex 40H, 10cm thick. Zip on the side.
-Up to 3 overhead cabinets.
-1 integrated niche.
-Premium garage underneath with black rubber floor. 2 side plywood units, one for the water system, one for the electrical system.
-Thermal curtain at the rear of the bed (large choice of colour).
(Optional children bed on request.)
-Wall bulkhead separation with mirror. (Door access to cabin or curtain on demand).
-One slide opening glass window in the sliding door with integrated blackout blind.
-2 fixed windows in the rear doors.
-1x Roof extractor Maxx Air fan Deluxe with remote control.
-Whale Heat Air Gas and electric underslung for space saving
-Whale Expanse water heater Gas and electric (underslung mounted when possible, for space saving)
-1 rigid solar panel, up to 300W (depending on the space available on the roof)
-105Ah Roamers Lithium battery smart app monitor control.
-Victron MPPT 75/15 smart solar charge controller.
-Power inverter Victron Phoenix 12/800 (To transform 12v solar power to 240V 3 pin uk socket).
-Victron Orion DCDC charger (To charge your leisure battery with your engine power when you are driving).
-AC distribution panels
-DC distribution fuse blocks
-USB socket x2.
-3 pins socket x2.
(Optional hook up system for “unlimited” power when you are in a camp site)
-4x recessed ceiling light.
-2x wall mounted reading light
-recessed lights over the sliding door or in the steps when possible.
-1x LED strips at the bottom of the kitchen units.
-LED light in garage.
-Up to 90L fresh water underslung tank with external filing point, 60L waste water tank underslung.(This depends of your vehicle model and year. We use the largest tanks available on the market depending of the underlung possibilities.
-Whale water pump 30psi (or equivalent) with filter and non return valve.
-Whale water accumulator (or equivalent).
-CBE wall mounted control panel with fresh and waste water level indicator.
-25L underslung LPG tank (refillable bottle system), with external filling point
-Internal LPG level control panel
-Weight bridge certificate.
-Gas Landlord’s certificate.
-Electrical installation certificate.
All of our conversions come with a 1 year warranty.
